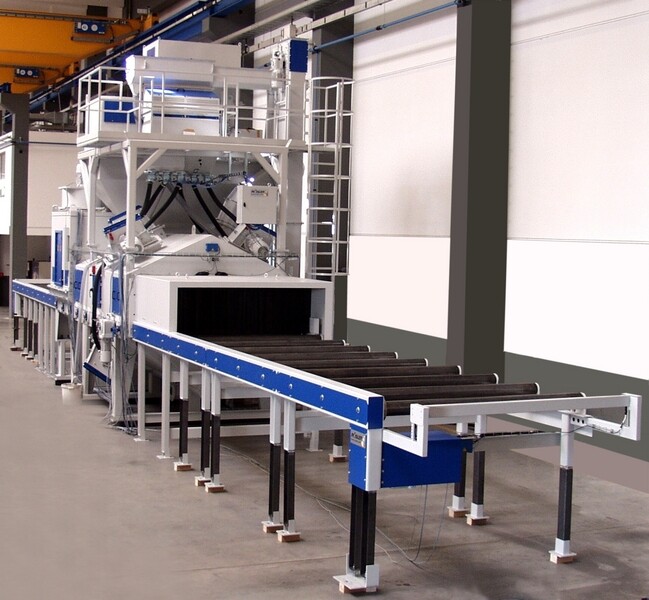

Machine ya Blasting ya Roller Shot .

Machine ya Blasting ya type convoyeur rouleau ezali système intégré oyo ezali na chambre ya nettoyage ya explosion ya tir, mécanisme ya explosion ya tir, système ya purificatio ya circulation ya matériel abrasif (y compris ba convoyeurs vis, ba ascenseurs, ba séparateurs, mpe système ya contrôle ya tir), système ya convoyeur rouleau, dispositif ya rouleau ya brosse, dispositif ya purgement, plateforme ya entretien, système ya contrôle ya poussière{0} système ya contrôle électrique, mpe ya contrôle électrique, mpe

Tinda mituna .

Ndimbola

Ba paramètres ya technique .

Machine à Blasting de type convoyeur à rouleau

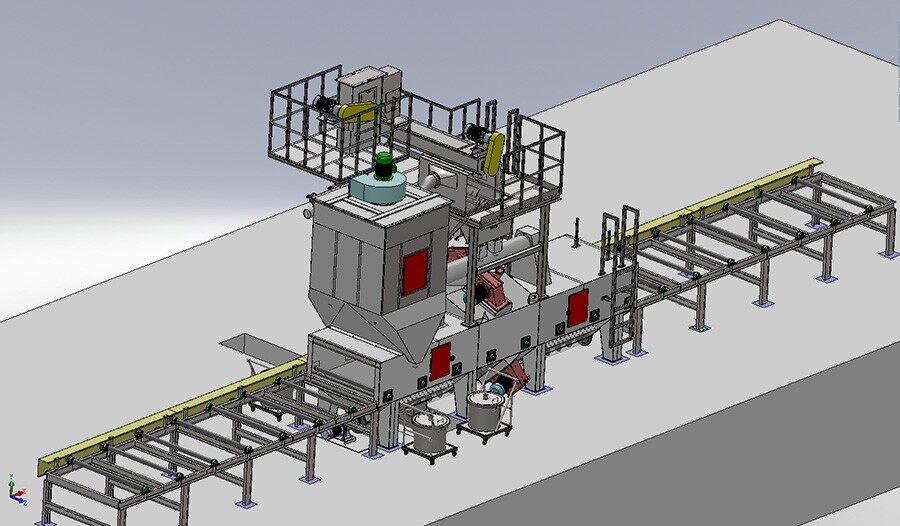

The roller conveyor type shot blasting machine is an integrated system comprising a shot blasting cleaning chamber, shot blasting mechanism, abrasive material circulation purification system (including screw conveyors, elevators, separators, and shot control systems), roller conveyor system, brush roller device, purging device, maintenance platform, dust removal system, pneumatic control system, and electrical control system. This equipment is specifically designed for surface rust removal of steel plates, profiles, mpe ba composants structurels na ba industries lokola construction ya masuwa, fabrication ya mituka, ba locomotives na ba véhicules, construction ya pont, na production ya ba machines.

Machine ya Blasting ya type convoyeur rouleau esalelaka ba convoyeurs rouleaux continus mpo na ko transporter ba pièces de travail. na tango ya processus ya explosion mpe ya nettoyage ya tir, ba opérations ya chargement mpe ya déchargement ekoki kosalema concurremment, na yango ko améliorer significativement efficacité opérationnelle.

Spécifications techniques ya machine à nettoyage ya type convoyeur ya rouleau ya rouleau ezali na kati

Mosala		Q6910	Q6915	Q6920	Q6925	Q6930	Q6940
Bopeto ya bonene .	mm .	1000	1500	2000	2500	3000	4000
Taille ya importé .	mm .	1000×400	1500×400	2000×400	2500×800	3000×800	4000×400
Bolai ya eloko ya mosala .	mm .	1200-6000	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
Vitesse ya transport .	m/min .	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
Épaisseur ya plaque ya acier .	mm .	3-60	1.5-60	3-60	3-60	3-110	4.5-100
Shot Blasting Quantité .	kg/min .	4×250	4×250	6×250	6×250	6×360	8×360
Quantité ya chargement ya liboso .	KG .	4000	4000	4500	4500	8000	11000
Rouleau ya brɔsi ya kobɛta .	mm .	200	350	450	600	850	900
Volume ya ventilation .	m3/h	17560	19000	19550	27758	28050	38000
Nguya ya mobimba .	KW .	78.3	113.5	156.6	224.55	204.8	293.6
